Product Description

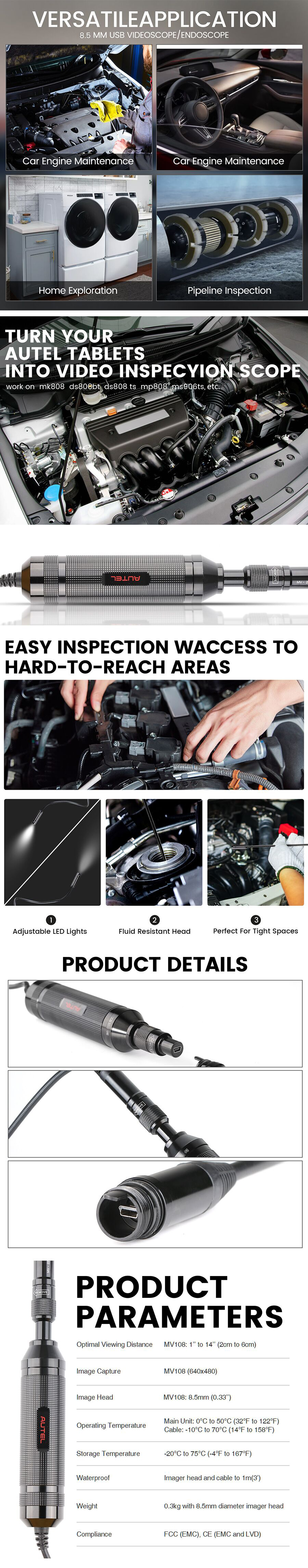

Autel MV108s is designed to work with MaxiSys series products (Need to be MaxiSys 906BT and its Higher Level tablet) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
MaxiVideo MV108 8.5mm Digital Inspection Camera for MaxiSys Tablet Kit

MaxiVideo MV108 8.5mm Digital Inspection Camera Features and Functions:
White LED lights to illuminate the inspection areas
Small diameter allows it to be used in the tight spaces
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections
Powerful and perfect for inspecting most spark plug holes
Super bright LED and high resolution provide crystal clear images


MaxiVideo MV108 8.5mm Digital Inspection Camera Specifications:
Optimal Viewing Distance: 1’’ to 14’’ (2.54cm to 35.56cm)
Image Capture: 640x480
Image Head: 8.5mm (0.33’’)
Operating Temperature: Main Unit: 0°C to 50°C (32°F to 122°F)
Cable: -10°C to 70°C (14°F to 158°F)
Storage Temperature: -20°C to 75°C (-4°F to 167°F)
Waterproof: Imager head and cable are waterproof to 3m(10’)
Weight: 0.3kg with 8.5mm diameter imager head
Compliance: FCC (EMC), CE (EMC and LVD)

MaxiVideo MV108 8.5mm Digital Inspection Camera‘s Connection with MaxiSys Tablet:

Package including:
1pc x Magnet
1pc x Mirror
1pc x Hook
Whatsapp: +86 18186426016If you have any problem, please do not hesitate to contact us.
Technical Support
Autel latest upgraded version Autel MaxiVideo MV108S inspection videoscope is coming, what's it new and different from the old cameras? Here we've compared it to MV108, MV105 & MV105S to help figure out.
Autel MaxiVideo MV108S vs. MV108 vs. MV105 vs. MV105S
|
Autel MV108S |
Autel MV105S |
Autel MV108 |
Autel MV105 |
Imager head distance |
8.5mm |
5.5mm |
8.5mm |
5.5mm |
Depth of field |
3~8cm |
2~10cm |
2~6cm |
2~6cm |
Angle of view |
81° |
90° |
70° |
70° |
Imager head cable length |
1m |
1m |
1m |
1m |
Camera |
2MP |
1MP |
0.3MP |
0.3MP |
Connection |
USB2.0 |
USB2.0 |
USB2.0 |
USB2.0 |
Waterproof level (Imager head) |
IP67 |
IP67 |
IP67 |
IP67 |
Operating Temp. |
(-10℃~70℃) |
(-10℃~70℃) |
(-10℃~70℃) |
(-10℃~70℃) |
Storage Temp. |
(-10℃~70℃) |
(-10℃~70℃) |
(-10℃~70℃) |
(-10℃~70℃) |
Reflector |
Yes |
Yes |
Yes |
Yes |
Magnet |
Yes |
Yes |
Yes |
Yes |
Hook |
Yes |
No |
Yes |
No |
